Bronze Alloy CuSn10 Feedstock MIM Metal Powder Injection Gray Color

Ask Lasest Price
Brand Name :	KADAM
Model Number :	CuSn10
Certification :	ISO9001 & ISO13485, RoHs, Reach,MSDS...
Price :	Negotiatable
Payment Terms :	T/T
Supply Ability :	100MT per month.
Delivery Time :	10-15 work days.

Add to Cart

Product Details
Company Profile

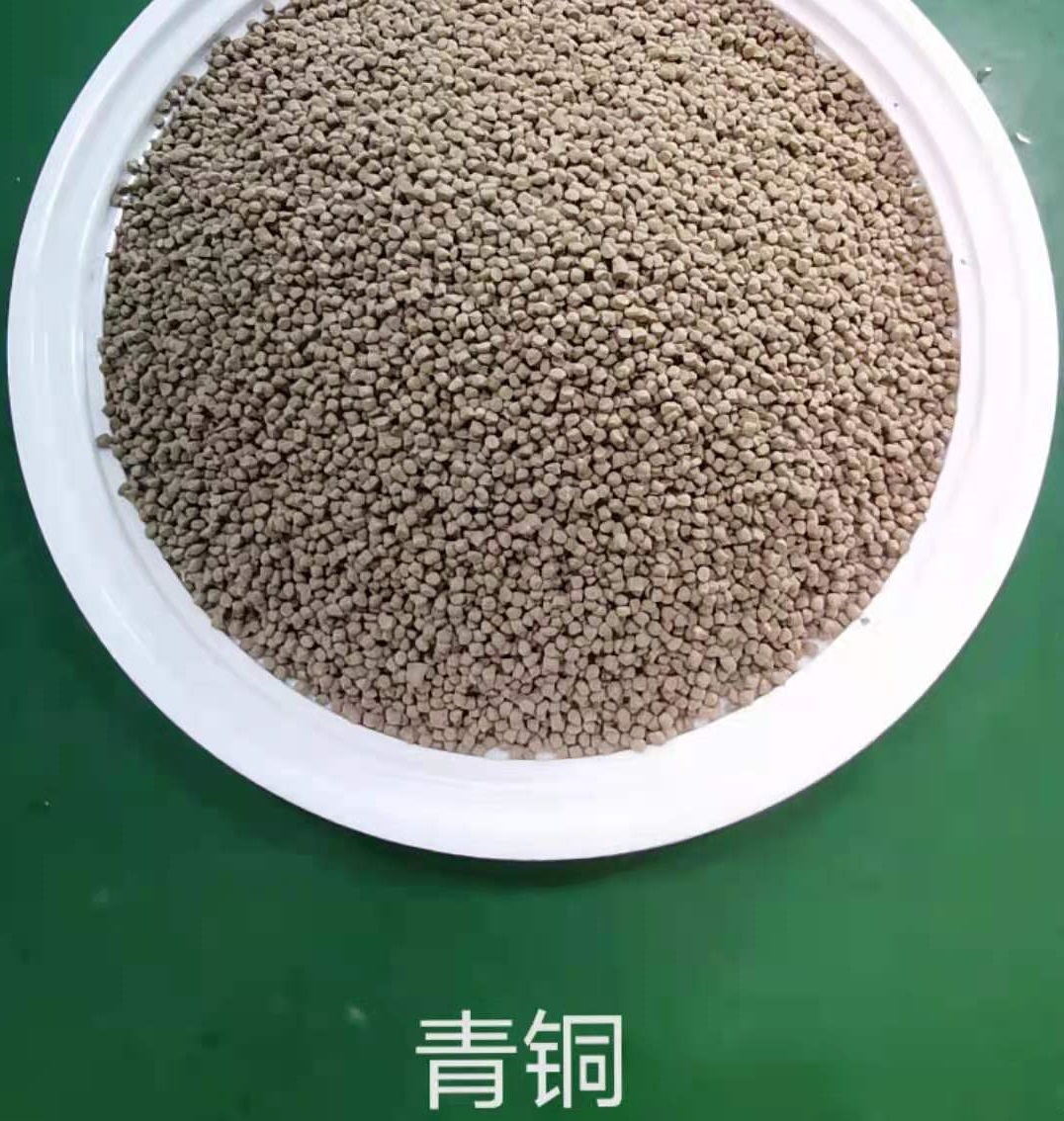

Bronze Alloy CuSn10 Feedstock MIM Metal Powder Injection Gray Color

Bronze Alloy Power Injection Feedstock

Power Type: Gas Atomization

Specification: High Hardness, plasticity, wear resistance, corrosion resistance, bright color.

Manufacturing Process: MIM / Metal Injection Molding

Product Description: The Gas-Water atomized powder is based on the nitric acid catalytic debinding system and can be used directly for injection molding material granules to produce CuSn10 bronze alloy sintering parts.

Product Standard:

Item	Unit	Specification	Test method
Melt flow index (MFI)	g/10min	1500±500	ISO1133
Green part density	g/cm³	5.3±0.03	ISO3369
Sintering density	g/cm³	>8.1	ISO3369

Standard Processing: Standard injection molding machine for thermoplastic resins, based on the nitric acid catalytic debinding system.

Injection Molding:

Injection temperature	Zone 1	Zone 2	Zone 3	Nozzle
	180℃	185℃	190℃	195℃
Mold temperature	90 ~ 125 ℃
Screw speed	50 r/min
Injection speed	10 cm³/s
Molding pressure	900 bar
Holding pressure	900 bar
Holding time	0.1~3 s

Stainless Steel material powder metallurgy metal injection molding sintered parts MIM products.

How to work with us
1. Send us 3D drawing (STEP/IGS/SolidWorks format etc. )
2. Specify the requirements (quantity, material, and surface finish requirements etc) to us via email.

Manufacturing range	Metal injection molding products and MIM material development and manufacturing.
color	could be customized
Applicable Material	stainless steel/titanium/brass/copper etc.
Our advantage	1. Rich experience in metal injection molding field. 2. Small order accepted for the beginning 3. New material develop capability. 4. Top quality guaranteed by skilled workers, managing system and status of facilities. 5.100% quality inspection before delivery
Surface finsih	Natural machined color/anodized finish/ coating / Passivation / PVD finish/nickel white/brush/heat treatment/fine glass beads/grounding/tumbled finish etc.
Payment Terms	50% deposit before production and 50% balance before arranging to ship
